Energyra® DeflectIQ
No glare, no flare
Today, solar panels are mainstream in all industrial and civilian areas. In some specific applications the installation of solar panels requires extra care. For instance at airports, military sites or next to highways reflections, glare of flash blindness may be disturbing. Our DeflectIQ panel is made of real anti-reflex glass, rather than a traditional AR coating (which is insufficient).
Airport & Highway Solution
The risk of an ocular impact is a concern for locations such as airports, where pilots, tower personnel and even military personnel may be disturbed by a glint or glare from solar panels.
For the application of solar panels at these locations, a traditional AR coating is not sufficient.
Energrya is proud to present the DeflectIQ panel. No coating, but real anti-reflex, fully deflective glass. With all the advantages and features that entails.
Unique - EU manufactured - deflective glass. No power-harvest concessions. No trade-offs in lifespan. Low carbon footprint. Industry standard mounting. And: a record-breaking power density & redundancy.
This unique product is only available upon special request, since the applied (iron-free, antimony-free, high transmittance) glass is, let's say, not a mainstream product. However: appplied in our module, results are breathtaking. This truly enables solar in traditional no-go area's.
The Energyra DefelectIQ is a certified product and available in a range of 345 to 370 Wattpeak (Wp).
Still compact (1683x1023 mm), light (17,6 kg) and with an incredible power density, DeflectIQ results in maximum power harvest for any demanding environment. Do you prefer a special size? Let us know - we've already seen quite a few special (and sensitive) applications.
All Energyra solar modules combine innovative MWT cell and module technology of the highest quality to achieve high efficiency, excellent weak light performance and durability under dynamic weather conditions.

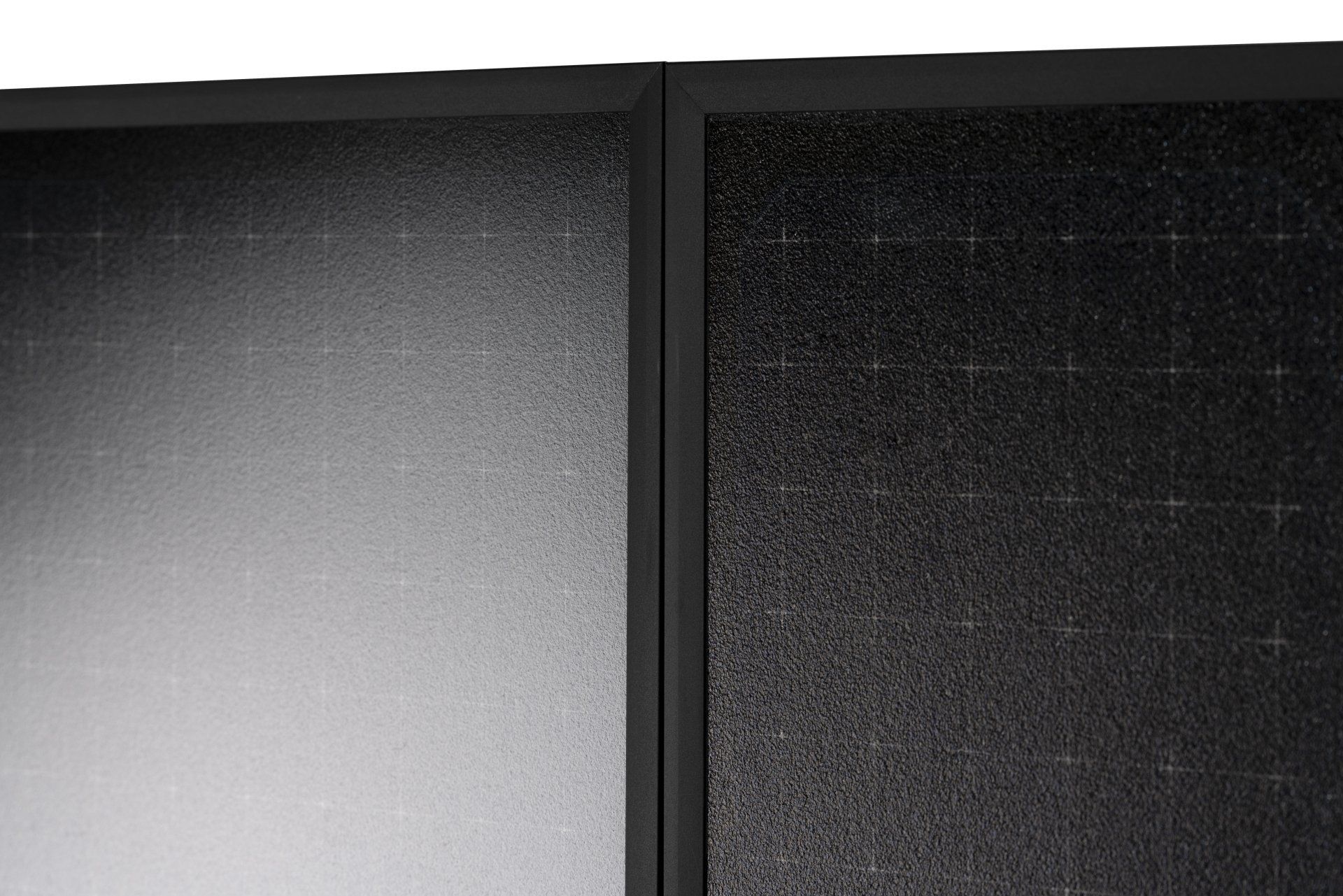

Picture: Energyra R&D.
A very clear difference: the lack of busbars, tabbers, stringers ensure a more sturdy module while increasing the actual power harvest with architectural design and no reflection.
Some benefits at a glance
MWT - PERC Solarcells
More net surface to generate power
Each solar cell converts sunlight into electricity. PERC monocrystalline cells are known for their broader spectral response, allowing them to generate lots of power in the early morning and late afternoon light as well. Combined with MWT (Multi Wrap Through) technology, the cells have a larger working surface that is exposed to the sun than conventional cells. Busbars are unnecessary. Above all: busbar-shading is completely ruled out!
~3%
More working surface
>0.5%
More efficiency
Minimized micro-crack risk
More robust than conventional modules
Small cracks in solar cells are impossible to see with the bare eye, but can really impact the performance of a PV system. Most solar cells are composed of very thin silicon wafers, usually around 0.15 - 0.20 mm thick. Pressure or stress can induce micro-cracks. Newbies in the solar industry often unknowingly create micro-cracks by throwing boxes of gear on top of stacked panels or even balancing panels on their heads as they walk towards a ladder. Standing or kneeling on panels during installation is also a contributor to micro-cracks.
Energyra bank contact modules are more robust than conventional modules because of the integrated Conductive Backsheet (CBS). This innovative copper design ensures optimal contact with an incredible number of contact points across the entire cell. It acts as an additional (metal) environmental barrier to protect the cells and keep them sturdily in place, and actually strengthens the contacting architecture. If a micro-crack should occur, the cell will still be in perfect contact with the copper that conducts the energy, effectively designing the negative effects of microcracks out of the module.
Quality cells combined with high-quality European solar glass and sturdy frames makes Energyra modules virtually immune to micro-cracks in real-life conditions.
DeflectIQ specifications
ELECTRICAL SPECIFICATIONS (STC, values for a 360'er)
| Energy yield per module | kWh/year | 372 |
|---|---|---|
| Max. power | Pmax (Wp) | 360 |
| Tolerance | Pn (Wp) | 0 / +3% |
| Open Circuit Voltage | Voc (V) | 40,6 |
| Short Circuit Current | Ics (A) | 10,58 |
| MPP Voltage | Vmpp (V) | 33,8 |
| MPP Current | Impp (A) | 10,66 |
| Module Efficiency | (%) | 22,5 |
| Maximum System Voltage | (V) | 1000 |
| Maximum Series Fuse Rating | (A) | 15 |
GENERAL SPECIFICATIONS
| Module Dimensions (L x W x H) | 1683mm x 1023mm x 33mm |
|---|---|
| Cell size | 162.75mm x 162.75mm; 60 cellen per module |
| Weight | 17.6 kg |
| Cell interconnect | Leadfree interconnect |
| Glass | 3,2 mm tempered, Ironfree, antimonyfree, AR coated |
| Cell type | Monocrystalline |
| Encapsulant | Photo-thermally stability improved EVA |
| Backsheet | Black, Fluorine free, PFas free |
| Frame | Anodized black aluminum with chamfered edges for minimal dirt build-up |
| Junction box | IP67 class, with 3 internal bypass diodes, double insulated 4mm² solar cable and (copper-plated gold-plated) Stäubli MC-4 connectors |
THERMAL CHARACTERISTICS
| NMOT | 43 °C ±2 |
|---|---|
| Temperature coefficient Voc ß | -0.28% / °C |
| Temperature coefficient Isc A | 0.06% / °C |
| Temperature coefficient Pmax Y | -0.36% / °C |
CERTIFICATION
| IEC 61215 | Electrical Specifications | Connectors, cables, diodes, power, hotspots, irradiation, PID, hail, bypass, leakage current |
|---|---|---|
| IEC 61730 | Product safety | Temperature, humidity, UV, mechanical and fire load, impulse voltage |
Other family-members
DynamIQ
LIGHTWEIGHT
project PV module
Ultra light solar panel.
From 1.8 kg/m2 and up, depending on the need or application. While maintaining the proven, highest power harvest per m2 (sqft).
IconIQ
Full-black
IBC backcontact module
The IconIQ module is based on ZEBRA interdigitated back contact (IBC) cells, aimed at reducing production cost for high efficiency back contact technologies. The cells have been shown to reach over 24% in production
Availability of DeflectIQ
Our DeflectIQ modules are distributed and supported by Rexel to your own installer in the Benelux. Contact your installer for a suitable quotation and simply ask for Energyra PV-modules: they will know exactly what to do.
Do you have specific questions or require industrial or mobile applications outside of the Benelux? Contacting Energyra is always a good idea!
