Energyra® EclectIQ

The lack of busbars, tabbers, stringers ensure a more sturdy module while increasing the actual power harvest with  architectural design.

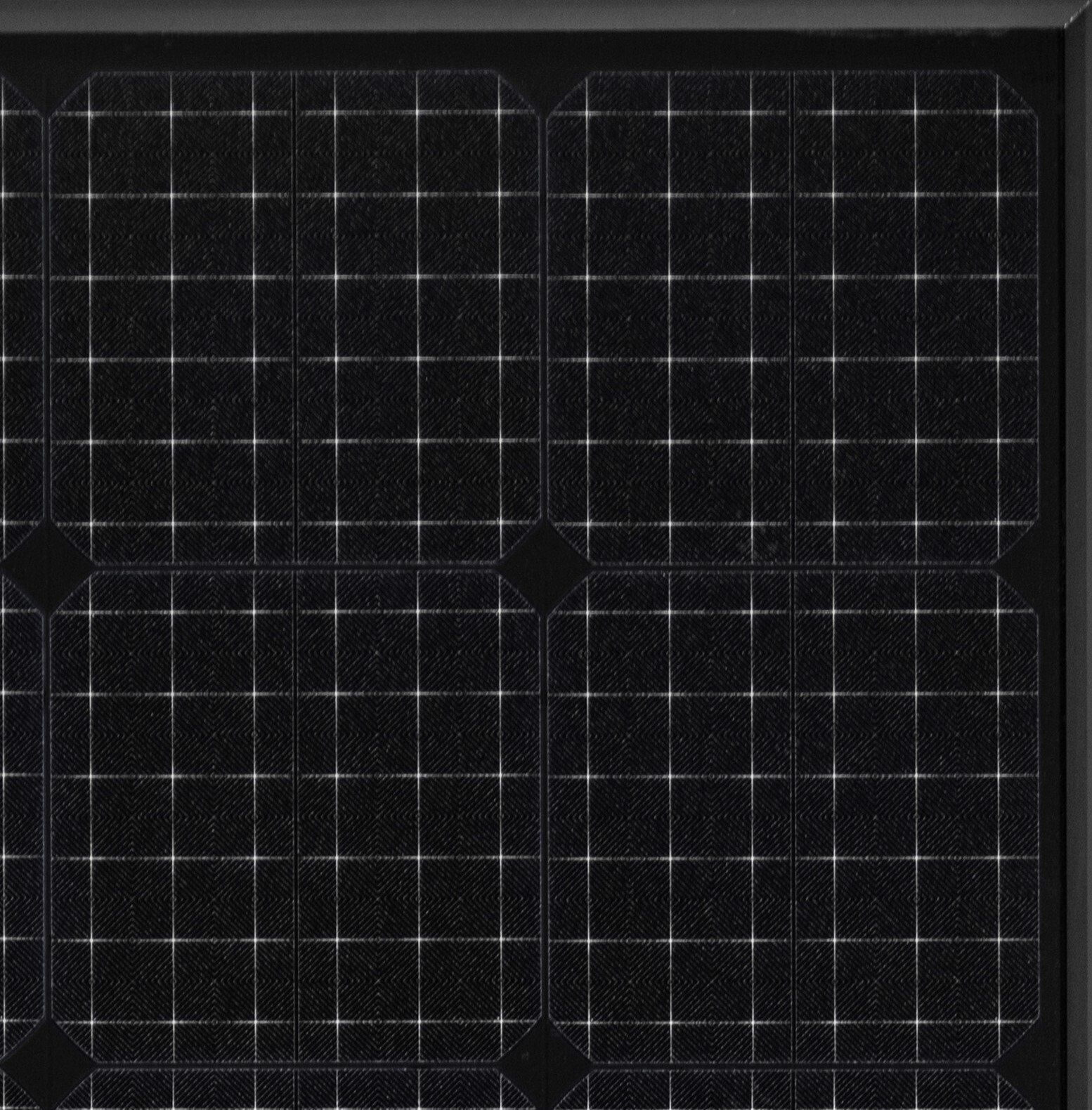

 MWT - PERC solar cells

More net surface to generate power

Each solar cell converts sunlight into electricity. PERC monocrystalline cells are known for their broader spectral response, allowing them to generate lots of power in the early morning and late afternoon light as well. Combined with MWT (Multi Wrap Through) technology, the cells have a larger working surface that is exposed to the sun than conventional cells. Busbars are unnecessary. Above all: busbar-shading is completely ruled out!

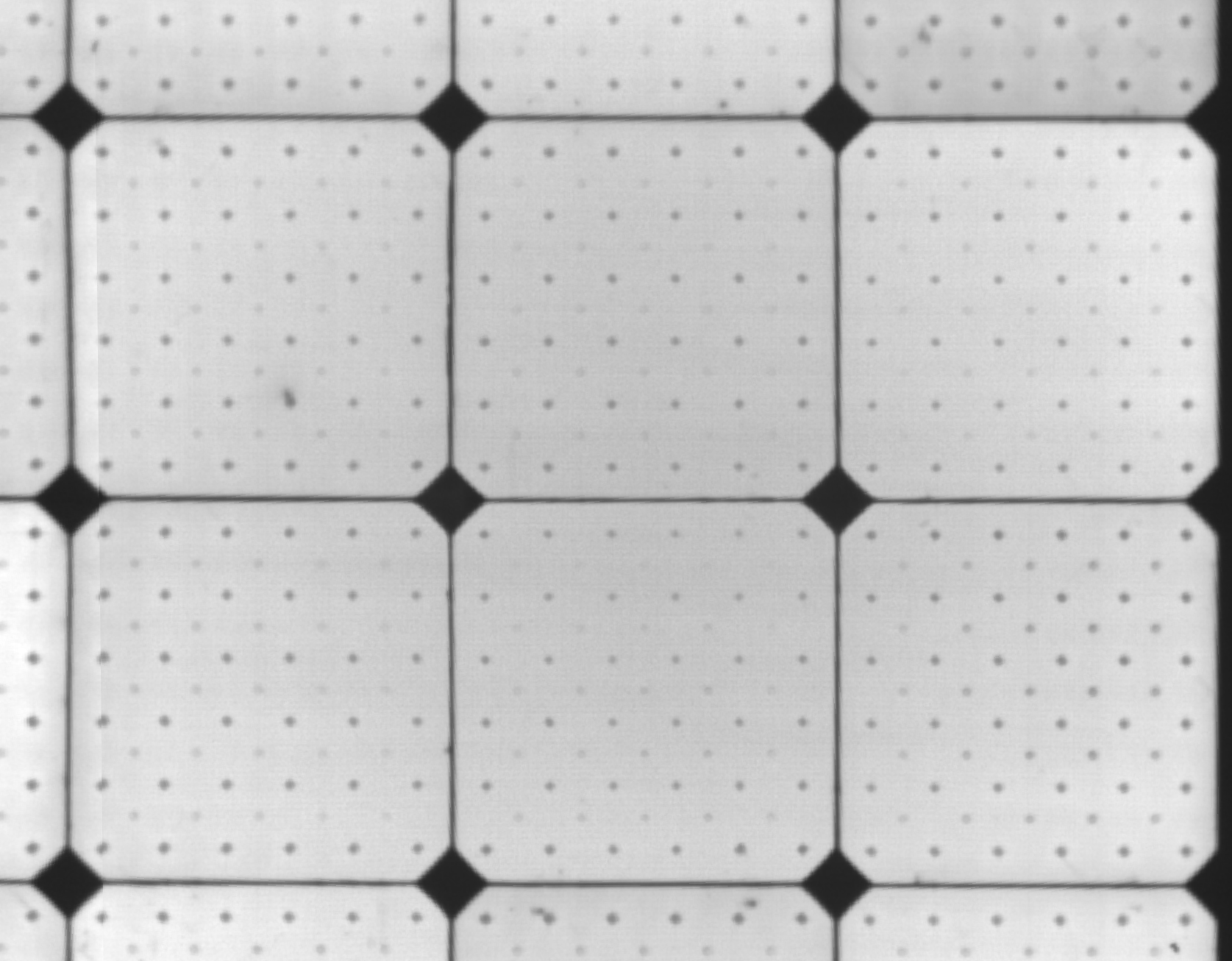

Minimized micro-crack risk

More robust than conventional modules

Small cracks in solar cells are impossible to see with the bare eye, but can really impact the performance of a PV system. Most solar cells are composed of very thin silicon wafers, usually around 0.15 - 0.20 mm thick. Pressure or stress can induce micro-cracks. Newbies in the solar industry often unknowingly create micro-cracks by throwing boxes of gear on top of stacked panels or even balancing panels on their heads as they walk towards a ladder. Standing or kneeling on panels during installation is also a contributor to micro-cracks.

Energyra backcontact modules are more robust than conventional modules because of the integrated Conductive Backsheet (CBS). This innovative copper design ensures optimal contact with an incredible number of contact points across the entire cell. It acts as an additional (metal) environmental barrier to protect the cells and keep them sturdily in place, and actually strengthens the contacting architecture. If a micro-crack should occur, the cell will still be in perfect contact with the copper that conducts the energy, effectively designing the negative effects of microcracks out of the module.

Quality cells combined with high-quality European solar glass and sturdy frames makes Energyra modules virtually immune to micro-cracks in real-life conditions.

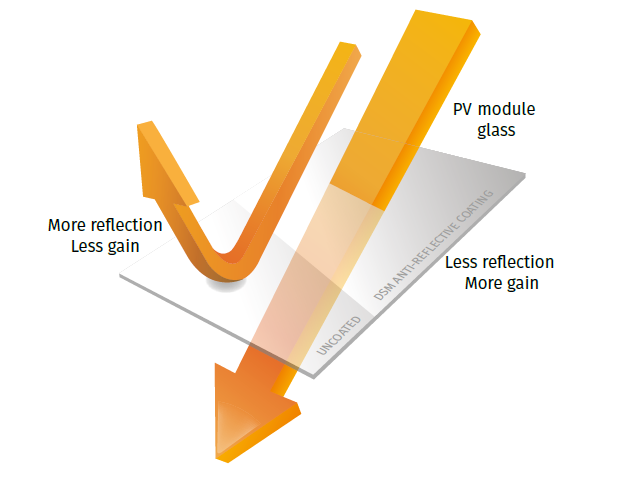

DSM Anti-Reflective Coating

Simply catching the sun better

Our modules are fabricated with Royal DSM's AR coating (nowadays part of the Covestro portfolio). This provides an improved 'angle of attack' effect. The result? Less reflection, and the generation of more solar power. Especially when the sun is low: in the early mornings and in late afternoons.

Many of the standardized specifications in the solar industry solely show measurements made with perpendicular incident light. But in practice, circumstances are never this ideal. Energyra solar panels perform way better, especially when the light falls in at a low angle, which is often the case in many Northern European countries. A reassuring thought!
